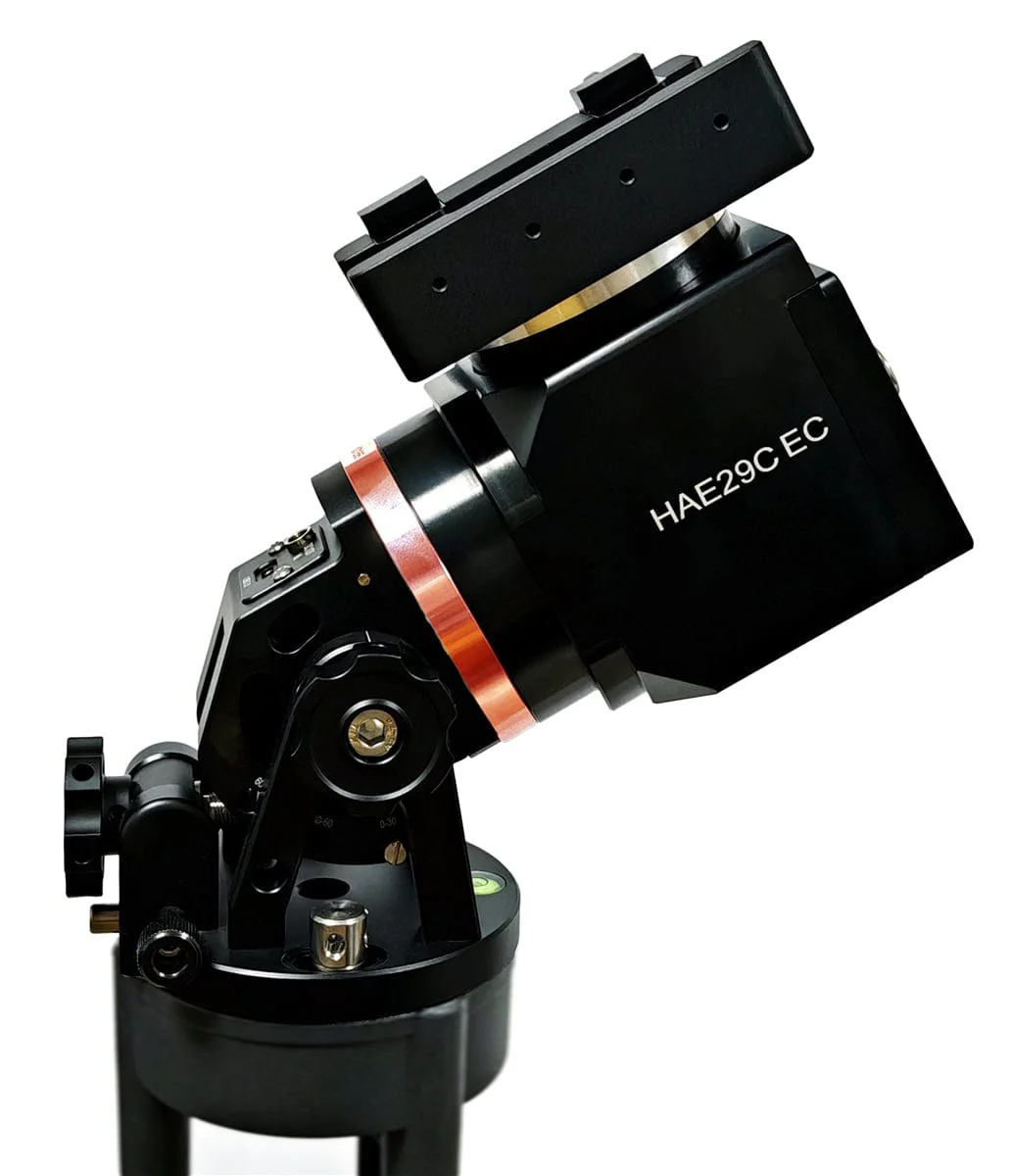

iOptron HHAE29C-EC AZ/EQ dual SWG - HE294C

Introducing the new members of iOptron strain wave gear mount family - AZ/EQ dual mount HAE29C and HAE29C EC! These light weight, high payload little titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8 lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the RA and DEC movement, the HAE29s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction brake that allows the mount to stop safely.

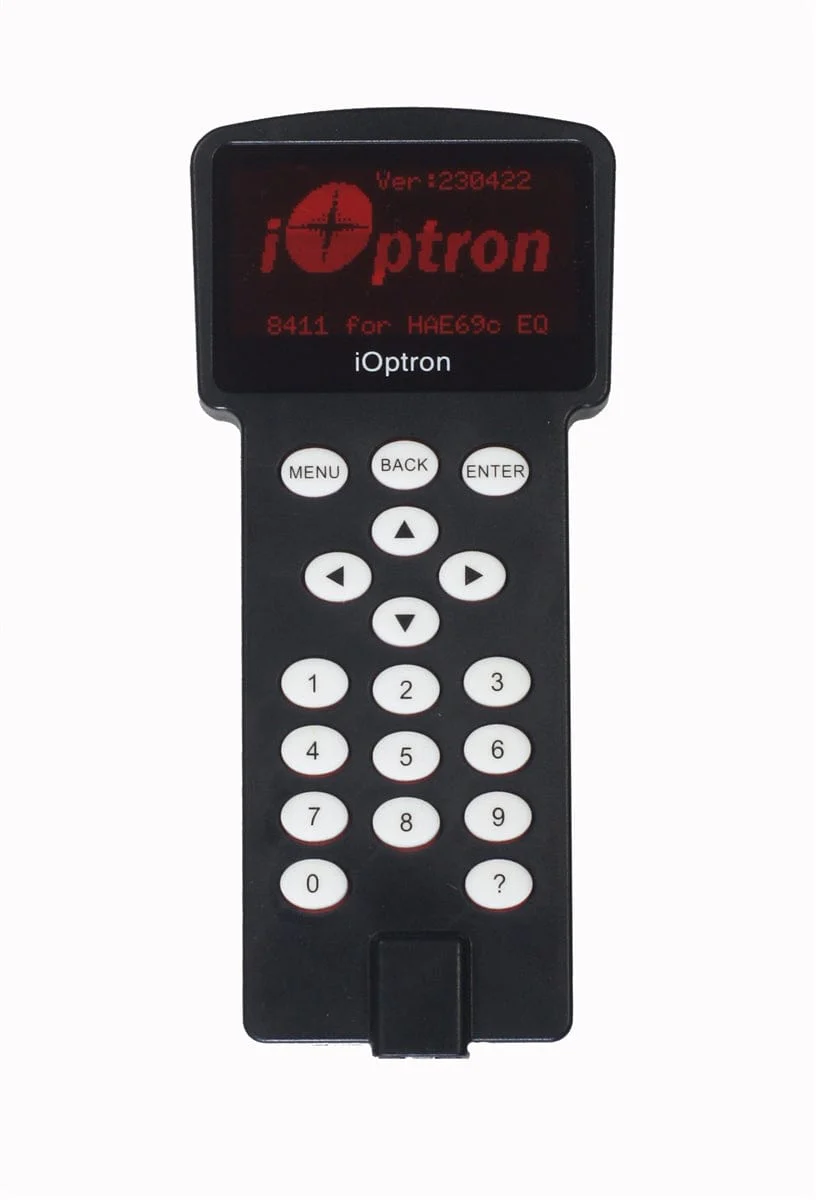

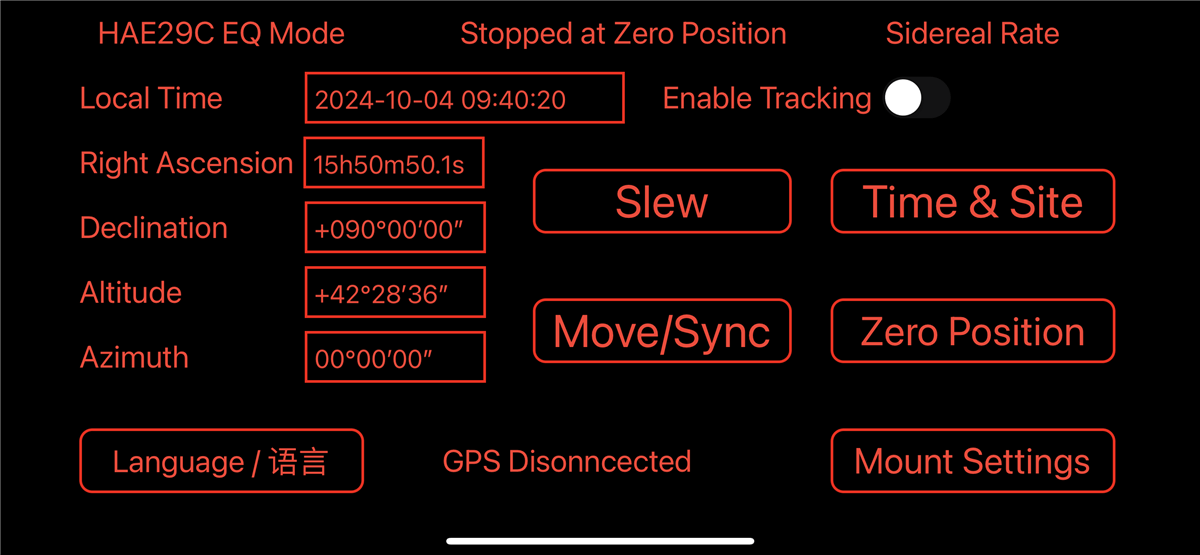

An HAE29 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a Smartphone/Tablet via iOptron Commander Lite or an App like Sky Safari; or a Raspberry Pi device via INDI driver, “C” models (internal main board versions) with built-in Wi-Fi allow for external control without need for a handset. Those who prefer using a handset, the optional 8411 Go2Nova® controller is available. Both versions of the HAE29C (Standard. or EC) have on saddle USB and 12V ports for easier cable management. A quality form fit case is included.

The HAE29EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

(Actual contents may differ from the image)

Features

• Advanced strain wave gear system technology
• Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs, include dovetail saddle)
• CNC machined
• High precision encoder on RA with Real-time PEC
• Unique friction brake to safely stop movement during a planned or unplanned power interruption
• 360 second gear period
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi
• USB port for firmware upgrade and computer control
• Carrying case
• Two year warranty
